Vivus Technologies Rack, Tunnel, Cage and Bottle Washers
Founded in 2014, Vivus Technologies is built on the knowledge of experienced welders, assemblers, installers, electricians, service techs, and engineers. Our insight into the working of these machines provides us with a highly informed expertise in manufacturing. Located in Medina, NY, our well-equipped facility offers manufacturing and refurbishment capabilities to serve all facilities that perform Life Science research. We are UL508A certified and ISO 9001 compliant.
Vivus prides itself on providing solutions for cleaning needs. We partner with every customer to offer high-quality, cost-effective solutions focusing on customer relationships and communication.
Vivus Technologies Rack & Cage Washer
Vivus automatic washers ensure effective, reliable cleaning with high throughput and efficiency. Designed for clean rinsing, detergent solution washing and drying of cages, racked utensils, transport carts and bottles used in the vivarium.
Swing out, manually operated, side hinged doors are standard with the unit. Made of double pane safety tempered glass, the doors provide an unobstructed view of the of the interior chamber, while promoting a convenient and aseptic flow of goods.
Limit switches included at each door, wired to the automatic control system.
Removable floors grate sections are standard to provide a level walking and rolling surface to facilitate loading and unloading of materials, as well as offering drainage to the pump.
Two lamps mounted on top of the unit fully illuminate the chamber.
To prevent loads from contacting the reciprocating spray manifolds, fixed guardrails run the length of the chamber.
Emergency stop buttons with audible and visual alarms are located at all door zones to terminate all processing functions.
| Model | Chamber Size (W x H x D) | External Dimensions (W x H x D) |
|---|---|---|
| VT2850 | 46″ × 85″ × 92″ | 85″ × 96″ × 99″ |
| VT3350L | 46″ × 85″ × 140″ | 85″ × 96″ × 147″ |
| VT3590WL | 72″ × 85″ × 140″ | 110″ × 96″ × 147″ |
Tunnel Washer
These hydro-spray washers
are automatic, with a heavy duty conveyor design that makes it efficient for continuous high volume processing. The washer can be installed freestanding or recessed through one or two walls, and is a floor mounted unit. This washer cleans and dries plastic or metal cages, racked watering bottles, and utensils.
Safety switches are equipped on all service access doors. If the doors are opened during operation of the machine, or they aren’t securely closed, all operation is suspended immediately and the operator screen then displays an alarm message.
The unit can be used in combination with a bedding dispenser or integrated bedding dump station, or just as a standalone washer. If the cap for the self flushing debris strainer is missing, or is installed incorrectly, the operator is notified via an alarm message on the control panel and the machine will not begin operation.
| Model | Belt Width | Tunnel (W x H) | External Dimensions (W x H x D) |
|---|---|---|---|
| VT2450 | 24” | 25″ x 25″ | 41″ x 83″ x 23′ |
| VT3650 | 36” | 37″ x 25″ | 53″ x 83″ x 23′ |
| VT4850 | 48” | 49″ x 25″ | 64″ x 83″ x 23′ |
Cabinet Cage and Bottle Washer
Standalone, automatic, heavy duty cage and bottle washer that provides effective and reliable cleaning with high throughtput and efficiency. Each model is designed for detergent solution washing and clean rinsing of bottles, cages, and racked utensils used in animal science and research facilities.
The rising, guillotine style doors are double insulated, with a safety switch and viewing window. Pass through operation is an option with these models, but single entry is standard. Optional door interlocks allow only one door to be open at a time to maintain integrity of the barrier wall. Limit switches are at each door location, and are wired with the automatic control system.
Double pane safety tempered glass offers excellent sound and heat abatement, as well as providing a large port for viewing inside the chamber.
A sturdy, multipurpose load grid permits direct placement of large articles at a convenient 32″ ergonomic load height.
A lamp on top of the unit fully illuminates the chamber through a safety glass upper window.
Provided at all external doors are emergency stop buttons with audio and visual alarms to immediately terminate all processing functions.
| Model | Chamber Size (W x H x D) | External Dimension (W x H x D) |
|---|---|---|
| VT773 | 48″ × 32″ × 34″ | 72″ × 78″ × 39″ |
| VT775 | 48″ × 32″ × 48″ | 72″ × 78″ × 53″ |

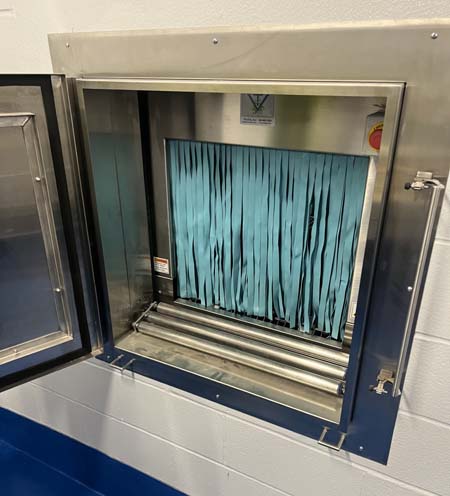

Misting Tunnel
ViraTek Decontamination Misting Tunnels are designed to provide complete coverage of any product conveyed through the work opening. Misting tunnels are self-contained and portable to move easily within a facility. Four stainless-steel casters, with locking brakes, allow smooth transfer throughout the facility. If desired, the misting tunnel can be locked into place in a specific location and can be used with an optional pass-through door for dirty/clean room settings. If utilizing the optional pass-through door, the entire misting tunnel is situated on the dirty side of the pass-through door, and an off-load conveyor attaches to the pass-through door on the clean side where the pass-through door can be closed when the misting tunnel is not in use.
As the product moves through the misting tunnel, spray nozzles are strategically located above, below, and on both sides of the product to ensure 100% sanitization coverage. Spray nozzles are complete with 200 mesh filter screens that are easily removable for maintenance, cleaning, or replacement. The nozzles have a capacity of .018gpm and are provided with a needle valve for optimum performance. At the end of the spray pipe, there is a shutoff that can be opened to flush the pipe in case of debris blockage. A creased, single drain pan increases the efficiency of drainage back to the reservoir with a filter screen to prevent debris from entering the drain.
BENEFITS:
- ViraTek Misting Tunnels stop pathogens before they enter your facility by simply locating the portable (or fixed) unit to receive all incoming animal crates, bedding, feed, etc. All items fed through the misting tunnel receive a fine mist of sanitizer, providing complete coverage in 7 seconds.
- ViraTek Misting Tunnels increase the productivity of staff. Studies show it takes over 2 minutes for facility staff to completely sanitize the exterior of each incoming item via hand spraying. Not only does the misting tunnel save time, but also it eliminates repetitive hand motions associated with hand-spraying.
- Consistent and complete coverage is ensured since variations in employee techniques and capabilities are eliminated.
FEATURES:
- Self-contained – can be used as a portable unit or fixed in place
- Made of stainless steel using wrapped, seamless construction
- Multiple spray nozzles ensure 100% coverage
- Both models include an extra drain valve along with new chemical resistant tubing, fittings, and spray nozzles to reduce maintenance
- Easy load end access for filling, draining, adjustments, and maintenance
- 3 gallon capacity reservoir with visible level indicator has recirculated and single-use settings
- Pitched roller off-load conveyor with attachment hooks expands from 2’ to 8’
- Heavy duty package stop to prevent items from falling off conveyor
- Optional pass-through door for “barrier” facilities creates a misting tunnel system
- Dual clean-out tray that runs the entire width and length of the internal conveyor
- Internal LED lighting for servicing
- Designed with a UL 508A listed control panel
| Model | Chamber Size (W x H) | External Dimensions (W x H x D) | Weight |
|---|---|---|---|
| VMT-2020 | 20” x 20” | 30” x 60” x 59-1/2” | 300lbs |
| VMT-2828 | 28” x 28” | 38” x 60” x 67-1/2” | 400lbs |
Refurbishing Equipment
At Vivus Technologies, we take used washers and restore them to like-new condition with up-to-date software programming, electrical components, valves, and piping. These refurbished units are extremely reliable and save our customers time and money. Refurbished units are cost effective without compromising on performance or quality. In general, refurbished units have reduced lead times, meaning our customers can benefit from quality products without running into supply chain disruptions or shipping delays.
Our team has many years of experience in building new equipment and installing and refurbishing equipment from other manufacturers. We are proud to help our customers find the unit that meets their budget and needs. We offer a one year warranty on our refurbished units.
Equipment We Service:
- Autoclaves and Sterilizers
- Cage and Bottle Washers
- Cage and Rack Washers
- Glassware Washers and Dryers
- Tunnel Washers
- Bedding Disposal Stations
- Bedding Dispensers
- Bottle Fillers
Manufacturers We Service:
- AMSCO
- Basil
- Consolidated
- Getinge
- Lancer
- Northwestern Systems Corp/Betterbuilt
- Primus
- R-V Industries/BetaStar
- Schlyer Machine Company/SMC Roe
- Scientek
- Steelco
- Sterilco
- Steris
- Tuttnauer
- Lynx/Spire
Reach out to our team to learn more about our refurbished units and equipment service.
Bedding Dispenser
The Vivus Tunnel Type Bedding Dispenser ensures reliable, effective dispensing of animal bedding after processing in a tunnel washer.
The unit is initially filled by dumping bedding into the side storage hopper. To fill cages, the dispenser is operated with a tunnel washer and as the cage passes through the filling chamber, bedding is dispensed into the cages. Levels can be adjusted by varying the speed of the transfer belt. After the cages exit from the unit, they are manually unloaded.
The Bedding Dispenser is specifically designed for use in research at animal care laboratories and facilities to automatically dispense dry, chip-type, free-flowing, and solid bedding into animal cages.
The Vivus VBD series units automatically dispense bedding into animal cages. Model VBD42 dispenses bedding into cages simultaneously when the cage is conveyed through the filling chamber. The dispensed bedding volume is adjustable to accommodate various depths and sizes of cages. The dispensers accommodate a large variety of bedding types from multiple manufacturers.
Typical characteristics of bedding that are easily dispensed are small hardwood chips including:
- Virgin
- Debarked Maple
- Beech
- Birch
- Poplar, Individually or Mixed
- Corn Cob
- Paper-Type
Other bedding types may also be dispensed in the dispensers but may require additional options or equipment modifications. Please consult the factory to ensure your bedding will perform well in the VBD series dispensers.
Model Conveyor Width (inches) External Dimension (W x H x D) VBD42 42” (For use with 36” W tunnel washer) 96” x 96” x 50.5”
Maximize Your Facility’s Uptime
At Vivus we go beyond to ensure your equipment works as intended. We are focused on maximizing your facility’s uptime. Vivus is a trusted resource for your complete preventative maintenance and spare parts requirements. Vivus can provide simple parts replacement to on-site full-service maintenance. Simply contact us with your equipment model and serial number.
Vivus Technologies provides quick and cost-effective consumable parts kits, replacement parts, and OEM washer repair parts for all equipment we manufacture as well as for a variety of brands in the industry. We consistently stock common wear parts to ensure short lead times and to assist our customers in reducing production downtime.
Whether you purchased your washer equipment from us or not, we carry replacement parts to ensure your washer remains operational. Purchasing OEM parts will ensure full compatibility with your washer equipment and provide the assurance that the washer replacement part will function correctly and return your equipment to its original condition.
Most parts are available for next day delivery if required which removes the need for stocking extra parts. However, if you would like to purchase a recommended spare parts kit or parts for inventory, please contact us at 585-798-6658. We can also provide preventative maintenance contracts as well as emergency service calls.
Customer Commitment
Vivus Technologies is a family-based company, valuing healthy client relationships above all else. It is our top priority to meet client needs while upholding strong communication and welcoming client feedback. Our expertise allows us to meet a wide range of needs, customizing our machines to fit client facilities as needed.
We are diligent in providing solutions that other manufacturers can’t. With dedicated phone support and quick turnaround times, our commitment to our customers is the driving force behind our success. Our quality and dedication is the foundation of our business and relationships.
